Tailscale and Kubernetes: Cluster Peer Relays

Faster communications with Tailscale-using containers.

As those of you who’ve been following me for a while both know, I am an enthusiastic user of both Kubernetes…

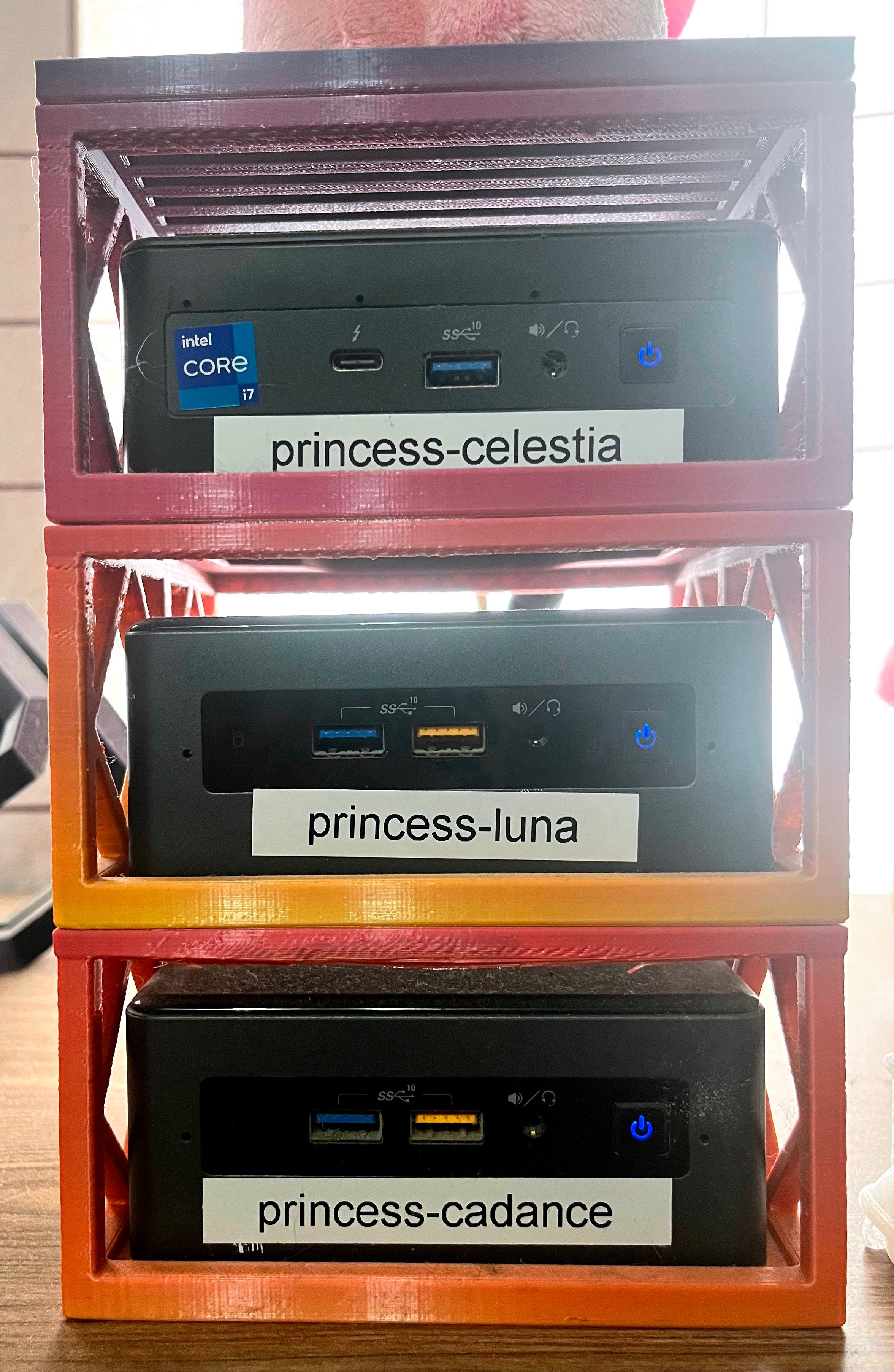

A redundant array of inexpensive servers.

…and of Tailscale.

Now, there are a number of containers running on my cluster which make use of Tailscale in one way or another. I have my Tor proxy there, which is published as a service using the Tailscale k8s operator. I keep a dedicated exit node in a pod, which is also handled for me by the operator. And there are some that use Tailscale directly: (golink, idp, etc.)

But using these isn’t as efficient as it could be. Because when you try to use them, traffic always starts out going via one of the off-site DERPs for a while until the hole-punching sorts itself out. After all, one of the points of k8s is that the internal pod and service networks are separate from your physical network, and not routable from it:

❯ tailscale ping idp

pong from idp (100.93.174.43) via DERP(dfw) in 34ms
pong from idp (100.93.174.43) via DERP(dfw) in 99ms
pong from idp (100.93.174.43) via DERP(dfw) in 28ms
pong from idp (100.93.174.43) via DERP(dfw) in 26ms
pong from idp (100.93.174.43) via 172.16.0.129:16232 in 1ms

So I started thinking about how to optimize this, and it occurs to me: we have peer relays now. And how hard could it be to put one of those inside a pod with access both to the host and the pod networks?

As it turns out, not very hard at all, but harder than it should be.

This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters. Learn more about bidirectional Unicode characters

Show hidden characters

	---
	apiVersion: v1
	kind: Secret
	metadata:
	name: tailscale-peer-relay-state
	namespace: kube-public
	stringData:
	TS_AUTHKEY: tskey-auth-REDACTED_NOT_THAT_IT_MATTERS
	---
	apiVersion: rbac.authorization.k8s.io/v1
	kind: Role
	metadata:
	name: tailscale-peer-relay
	namespace: kube-public
	rules:
	- apiGroups: [""] # "" indicates the core API group
	resources: ["secrets"]
	# Create can not be restricted to a resource name.
	verbs: ["create"]
	- apiGroups: [""] # "" indicates the core API group
	resourceNames: ["tailscale-peer-relay-state"]
	resources: ["secrets"]
	verbs: ["get", "update", "patch"]
	- apiGroups: [""] # "" indicates the core API group
	resources: ["events"]
	verbs: ["get", "create", "patch"]
	---
	apiVersion: rbac.authorization.k8s.io/v1
	kind: RoleBinding
	metadata:
	name: tailscale-peer-relay
	namespace: kube-public
	subjects:
	- kind: ServiceAccount
	name: "tailscale-peer-relay"
	roleRef:
	kind: Role
	name: tailscale-peer-relay
	apiGroup: rbac.authorization.k8s.io
	---
	apiVersion: v1
	kind: ServiceAccount
	metadata:
	name: tailscale-peer-relay
	namespace: kube-public
	---
	apiVersion: v1
	kind: Service
	metadata:
	name: tailscale-peer-relay
	namespace: kube-public
	labels:
	app: tailscale-peer-relay
	annotations:
	metallb.io/loadBalancerIPs: fdc9:b01a:9d26:0:2::3,172.16.2.3
	spec:
	type: LoadBalancer
	ipFamilyPolicy: RequireDualStack
	ports:
	- name: peer-relay
	protocol: UDP
	port: 61441
	targetPort: 61441
	selector:
	app: tailscale-peer-relay
	---
	apiVersion: apps/v1
	kind: Deployment
	metadata:
	name: tailscale-peer-relay
	namespace: kube-public
	labels:
	app: tailscale-peer-relay
	spec:
	replicas: 1
	selector:
	matchLabels:
	app: tailscale-peer-relay
	template:
	metadata:
	labels:
	app: tailscale-peer-relay
	spec:
	serviceAccountName: tailscale-peer-relay
	containers:
	- name: tailscale
	imagePullPolicy: Always
	image: "ghcr.io/tailscale/tailscale:latest"
	env:
	- name: TS_KUBE_SECRET
	value: "tailscale-peer-relay-state"
	- name: TS_USERSPACE
	value: "false"
	- name: TS_DEBUG_FIREWALL_MODE
	value: auto
	- name: TS_AUTHKEY
	valueFrom:
	secretKeyRef:
	name: tailscale-peer-relay-state
	key: TS_AUTHKEY
	optional: true
	- name: TS_EXTRA_ARGS
	value: "--hostname=k8s-peer-relay" # --relay-server-port=61441 --relay-server-static-endpoints=\"[fdc9:b01a:9d26:0:2::3]:81441,172.16.2.3:61441\""
	- name: POD_NAME
	valueFrom:
	fieldRef:
	fieldPath: metadata.name
	- name: POD_UID
	valueFrom:
	fieldRef:
	fieldPath: metadata.uid
	securityContext:
	privileged: true

view raw tailscale-peer-relay.yaml hosted with ❤ by GitHub

If you’re going to try and replicate this, note that I’ve put it in the kube-public namespace where I keep all the things that intermediate between the cluster and the outside world; and that you will need to change the MetalLB annotations to suit whatever load balancer and local network addressing scheme you have.

Also, this isn’t quite all of it.

You can configure Tailscale to be a peer relay using the tailscale set command after it’s running, but you can’t use the relevant —relay-server-port and —relay-server-static-endpoint options with tailscale up. Ordinarily I’d put a script in a custom container to do this sort of thing, but since at the moment I’m experimenting - and since we’re letting Tailscale store its state in a secret, it will persist past pod restarts - I just kubectl exec-ed into the tailscale-peer-relay pod once it was up and ran:

tailscale set --relay-server-port=61441 --relay-server-static-endpoints=”[fdc9:b01a:9d26:0:2::3]:81441,172.16.2.3:61441”

Again, if you’re doing this yourself, change the endpoints to the same ones you used for the service.

How does it look now?

❯ tailscale ping darkweb-tor

pong from darkweb-tor (100.65.32.54) via DERP(dfw) in 26ms
pong from darkweb-tor (100.65.32.54) via peer-relay(172.16.2.3:61441:vni:57) in 2ms
pong from darkweb-tor (100.65.32.54) via peer-relay(172.16.2.3:61441:vni:57) in 2ms
pong from darkweb-tor (100.65.32.54) via peer-relay(172.16.2.3:61441:vni:57) in 1ms
pong from darkweb-tor (100.65.32.54) via peer-relay(172.16.2.3:61441:vni:57) in 3ms
pong from darkweb-tor (100.65.32.54) via 172.16.0.130:23828 in 2ms

Much better! Everything but the first packet in the ping stays local, saving a good 100 ms of route-establishment.

Now, if I could just figure out a way to eliminate that first requirement to hit an external DERP at all, that’d be perfect. But this is a start.
